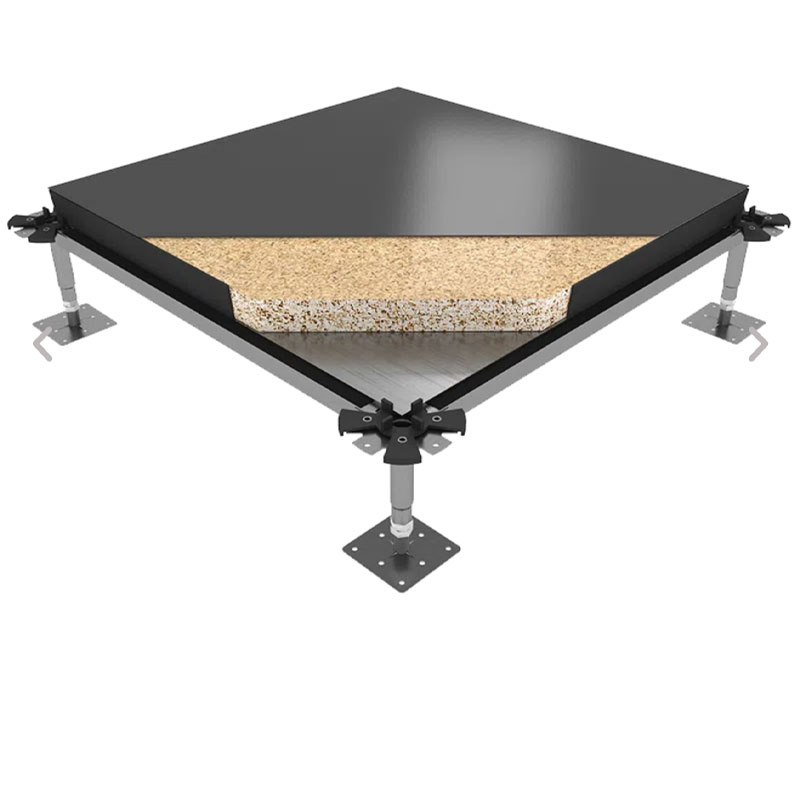

gamaflor pac wood chip core digital shot

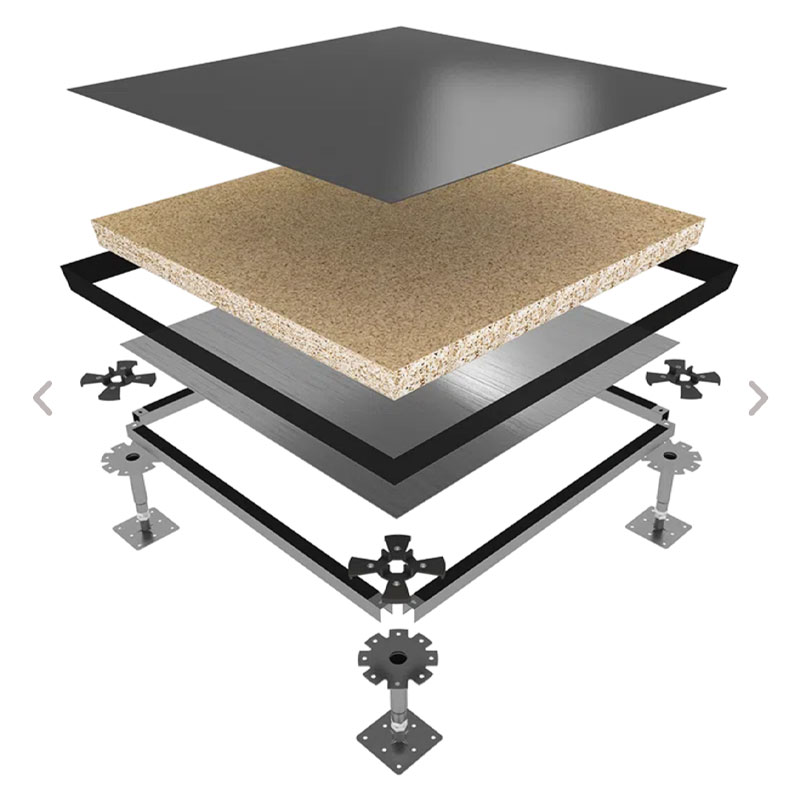

gamaflor pac wood chip core display components

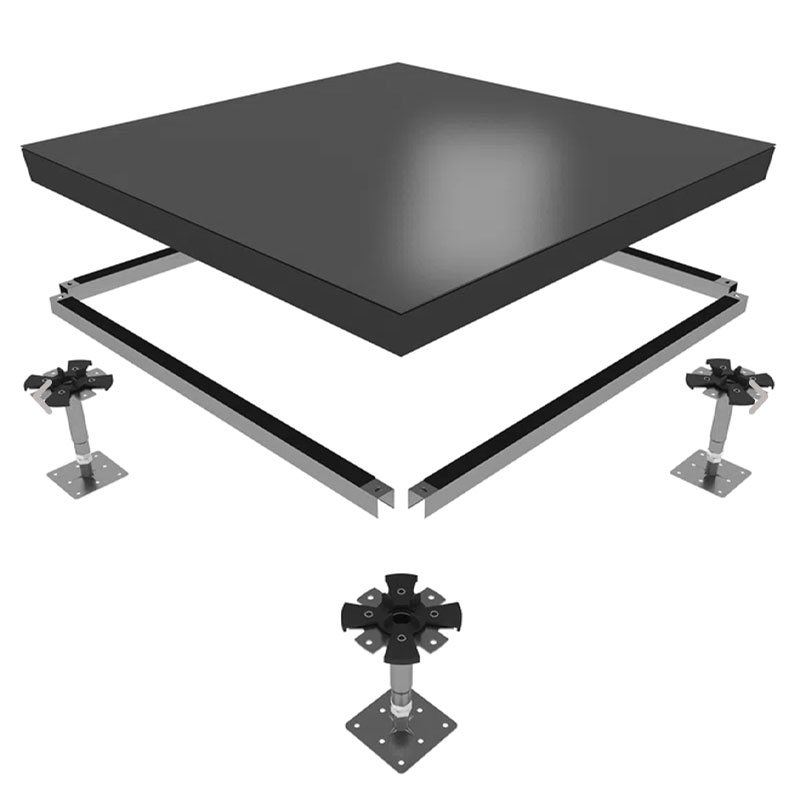

gamaflor pac cement core display without top surface

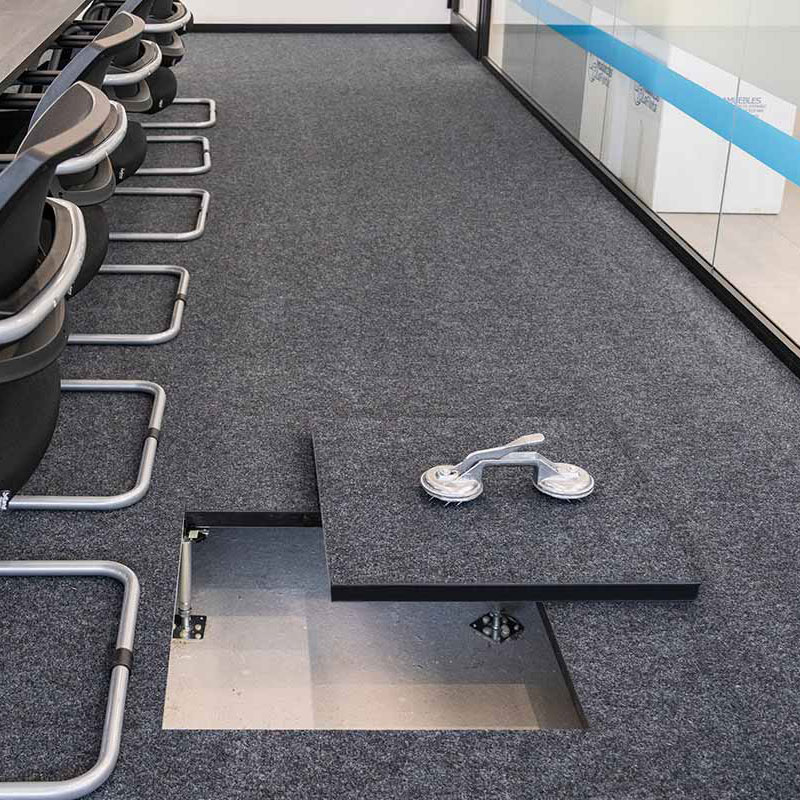

uninstalled gamaflor pac wood chip installed in office area

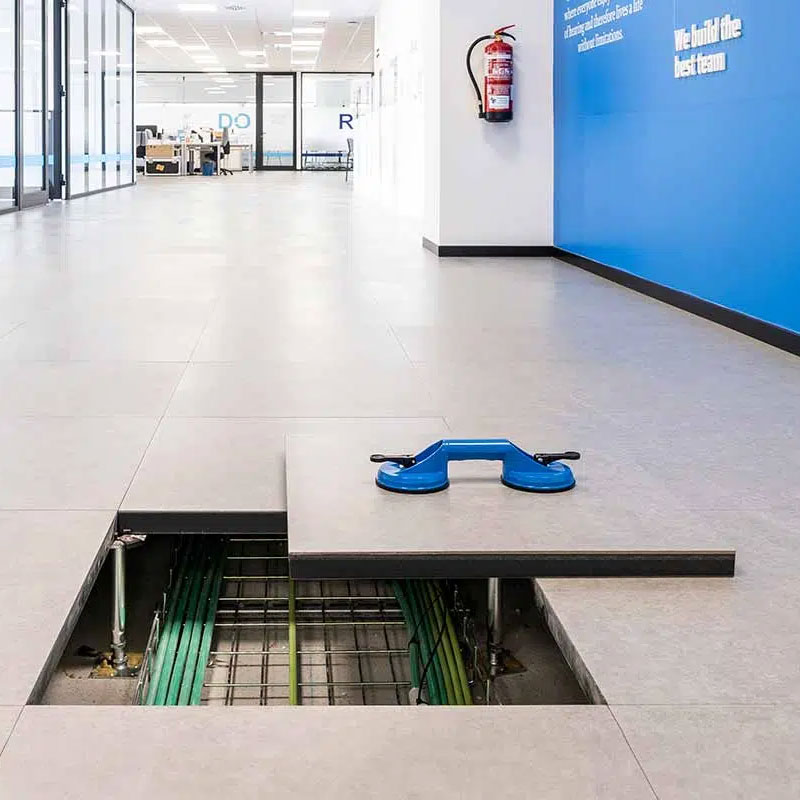

uninstalled gamaflor pac 35 wood chip installed in office area

GAMAFLOR PAC

HIGH DENSITY WOOD CORE AND STEEL REINFORCEMENT
HIGH PERFORMANCE WITH COST EFFECTIVENESS

GAMAFLOR PAC is designed to be versatile and highly adaptable to all applications providing significant load resistance levels, fire rating any and thus reducing investment costs. GAMAFLOR PAC is a conventional system designed and developed by POLYGROUP with the latest manufacture technology in regards to Leed parameters helping in the LEED certification processes on regard to recycled component materials topic. Green access floor Gamaflor PAC 35/05 consists of high density chipboard core panels and galvanized steel sheet bottom surface featuring an improved protection against external factors like fire and moisture. PAC panels are highly configurable offering a wide range of covering finish options from factory to turn system into fully accessible.

   33,33 KN/m2             Class 5A              >12 KN              BFL-S1 fire            Acoustic              LEED
Distributed Load.          EN 12825.     Ultimate Load.        classification.         Insulation.       Certification

Antiseismic
ASCE 7-10
Category:

Description

PANEL DIMENSIONS:
Panel Size 600×600 mm.

PANEL THICKNESS:
Panel thickness 30, 35 mm or 40 mm.

FINISHES / COVERINGS:
A wide variety of light finishes / coverings, ceramic, natural wood, granite, etc, is available to fit any interior design. Learn more about our SOVEREIGN technology.

CORE:
High density FSC certified chipboard available in different thickness options according to project needs.

BOTTOM:
Galvanized steel sheet of 0.5 mm thickness.

STRUCTURE:
Stable structure of raised access floor consisting of 75 to 2000 mm adjustable in height pedestals and lateral stringers.

GAMAFLOR PAC has a significant high resistance features to static and dynamic loads and fire rating (Bfl-s1 under UNE EN 13501). A stable structure stands on stringers and pedestals ensuring its structural integrity, stability and levelled floor.

The GAMAFLOR PAC access floor panel thickness can be configured in 30, 35 and 40 mm respectively in compliance with the demanding load requirements. Lightweight system and easy to install.
