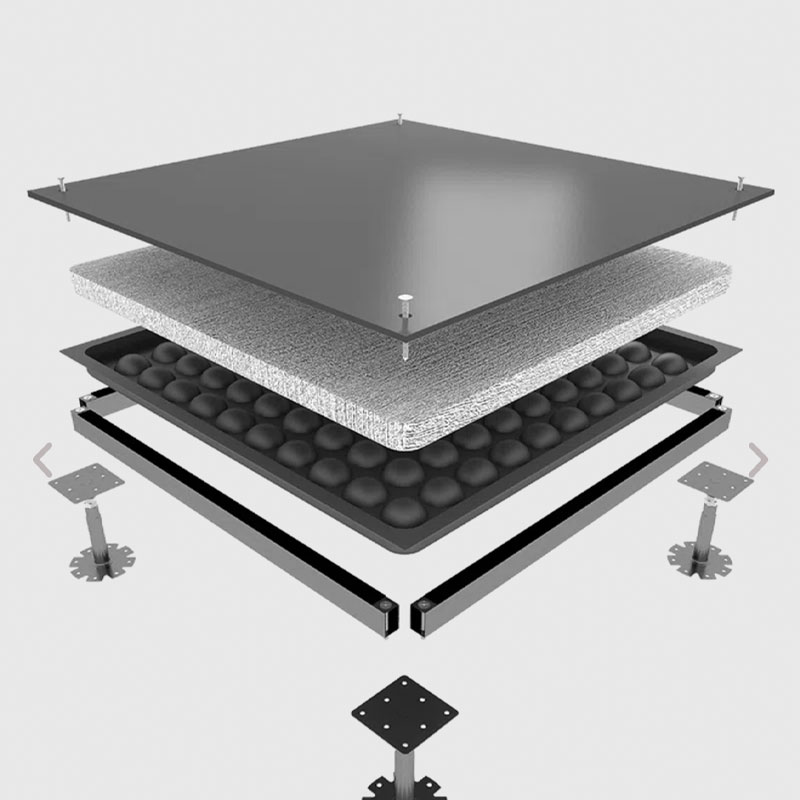

gamaflor steel cement core display components

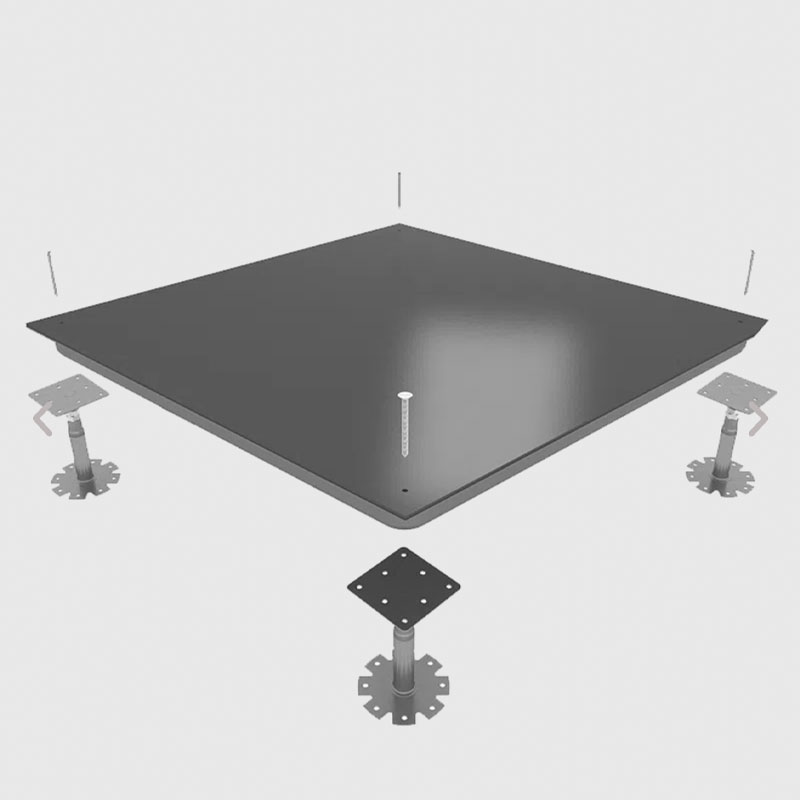

gamaflor steel cement core with pedestal and screws

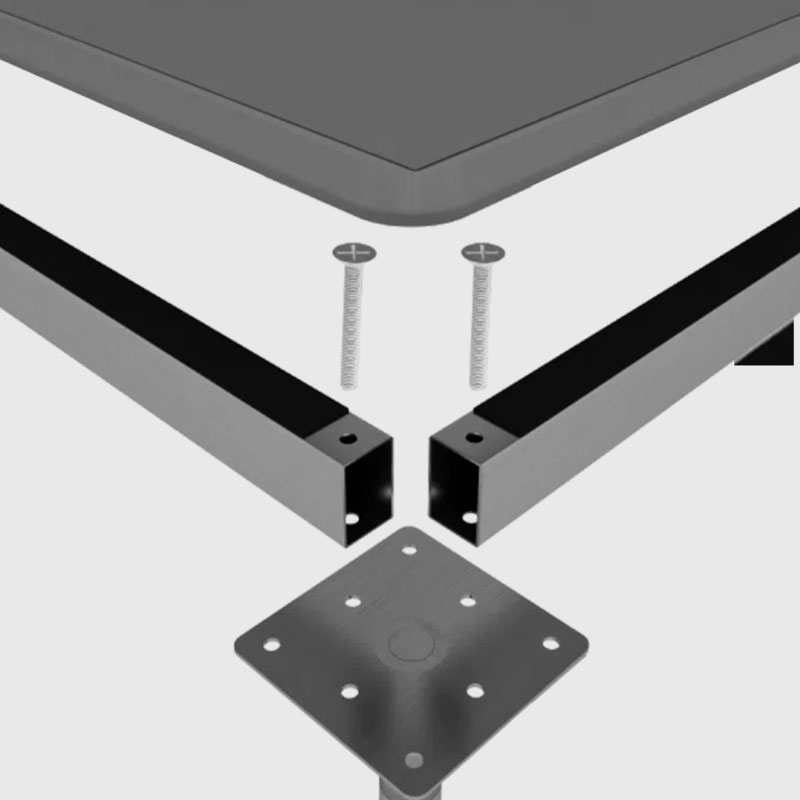

gamaflor steel cement core display pedestal and screws

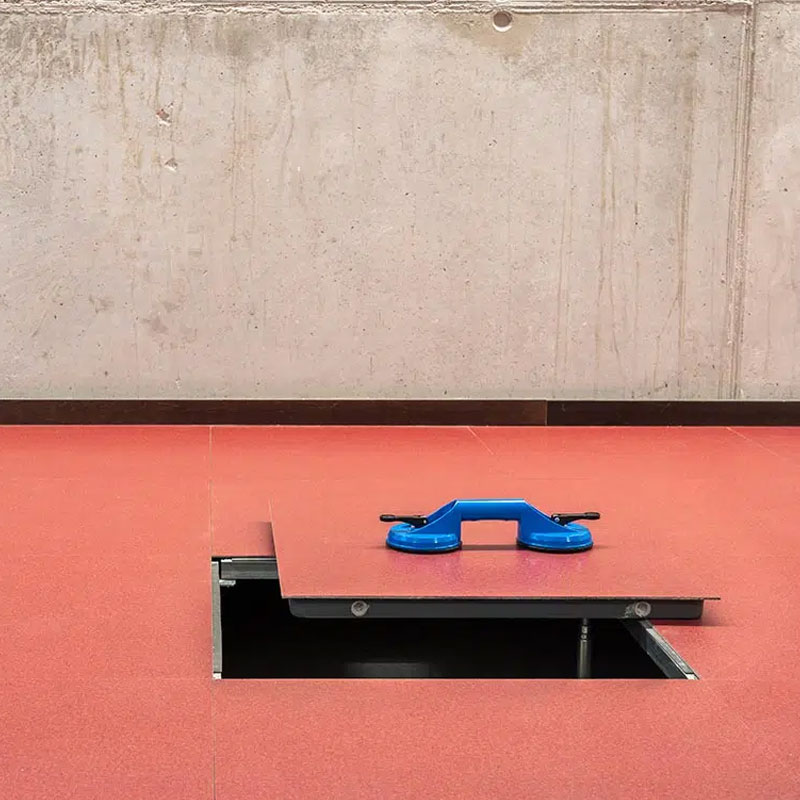

Installation gamaflor full steel installed in office area

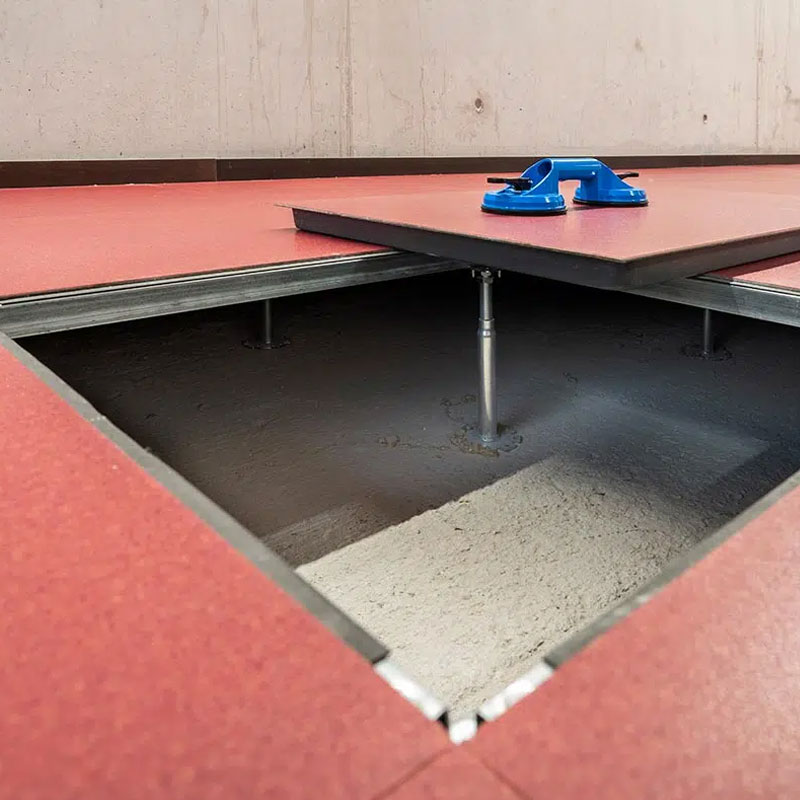

uninstalled gamaflor full steel installed in office area

GAMAFLOR FULL STEEL

THE MOST INNOVATIVE AND STABLE STEEL ENCAPSULATED RAISED FLOOR

A significant high resistance to fire and loads as well as its acoustic absorption level and inalterability under moisture guarantee its suitability for all kind of areas of use.

Corporations, Architecture and Engineering studios entrust their commercial and industrial projects to European raised floor GAMAFLOR for the technical and aesthetical high adaptability that the steel cementitius raised access flooring offer.

GAMAFLOR Raised Access Floor FULL STEEL system consists of 2 electro welded steel sheets injected at high pressure with light cement and finished with an epoxy anticorrosive smooth painting coat.


41 KN/m2                 Class 6A               >12 KN                  A1 fire
Distributed Load.      EN 12825.         Ultimate Load.     classification

Acoustic.         0% Moisture                Antiseismic
Insulation.        Absorption.                 ASCE 7-10
Category:

Description

PANEL DIMENSIONS:
Panel Size 600 x 600mm.

PANEL THICKNESS:
Panel thickness 34mm

PANEL CORE:
Steel encapsulated and cement injection

BARE FINISH:
Bare finished screwed raised floor for the subsequent application of finish loose lay covering

FACTORY FINISHED:
Possibility of applying a wide variety of floor finishes from factory

STRUCTURE:

Solid ad Stable Raised Access Floor structure consisting of steel pedestals and
bolted stringers reaching heights from 55mm-2000mm



The steel cement access floor tailored configuration grants the highest levels of dynamic and static load performance as well as maximum fire rating resistance (A1-s1 under UNE EN13501).

The solid fully bolted GAMAFLOR elevation structure (pedestal-stringer) ensures robust stability, levelling and a better acoustic absorption within the different accessible flooring systems.

The inert composition (steel cement panel) rates this system as one with 0% humidity absorption classification obtaining the lowest thermal conductivity level versus other traditional raised floor tiles in the market
