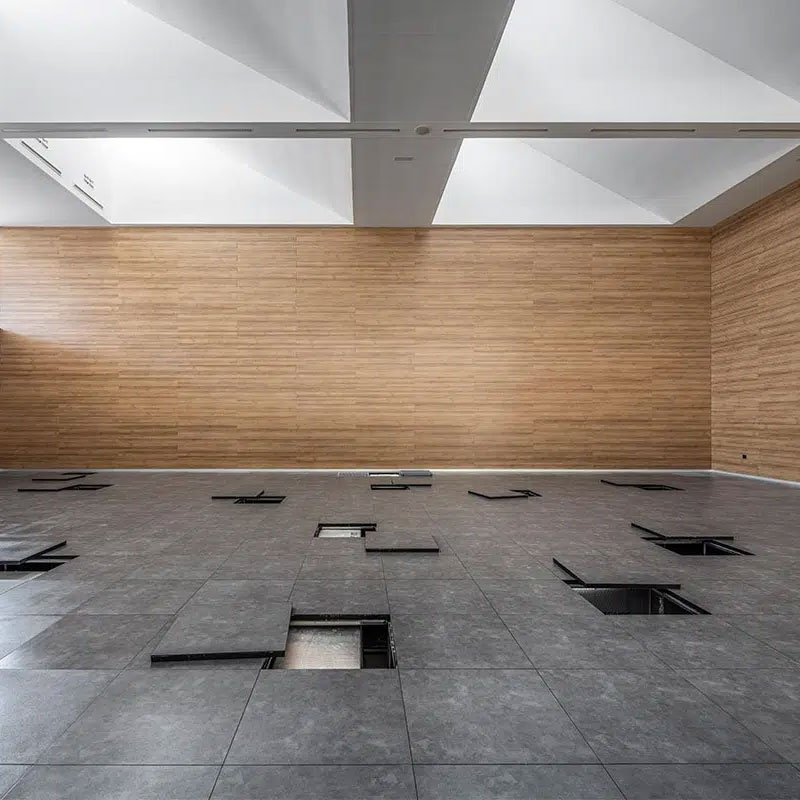

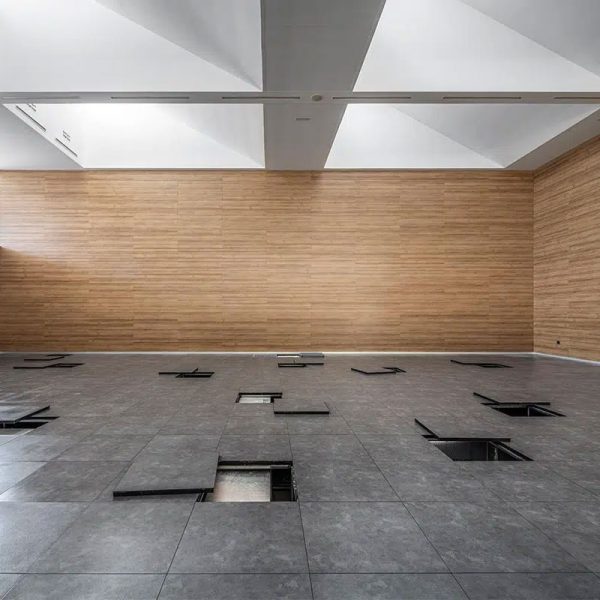

uninstalled gamaflor steel cement core installed in office area

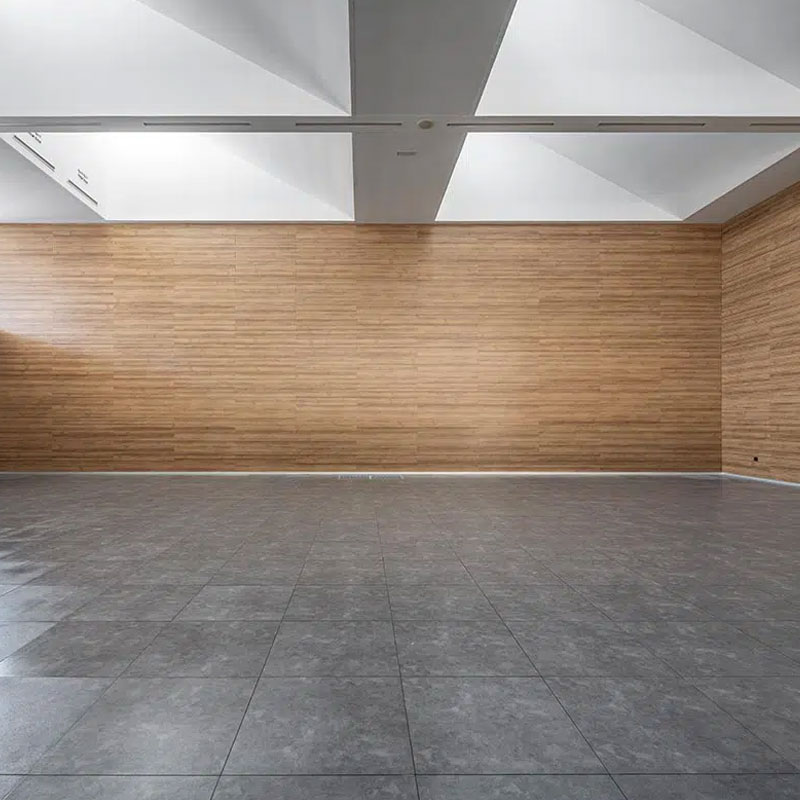

gamaflor steel cement core installed in office area

GAMAFLOR BANK

HIGH DENSITY WOOD CORE AND STEEL TRAY PROTECTION
HIGH PERFORMANCE & LIFESPAN

Raised access floor system GAMAFLOR BANK is designed to be versatile and highly adaptable to all applications providing significant load resistance levels, fire rating any and thus reducing investment costs. GAMAFLOR BANK is a conventional system designed and developed by POLYGROUP with the latest manufacture technology in regards to Leed parameters helping in the LEED certification processes on regard to recycled component materials topic.

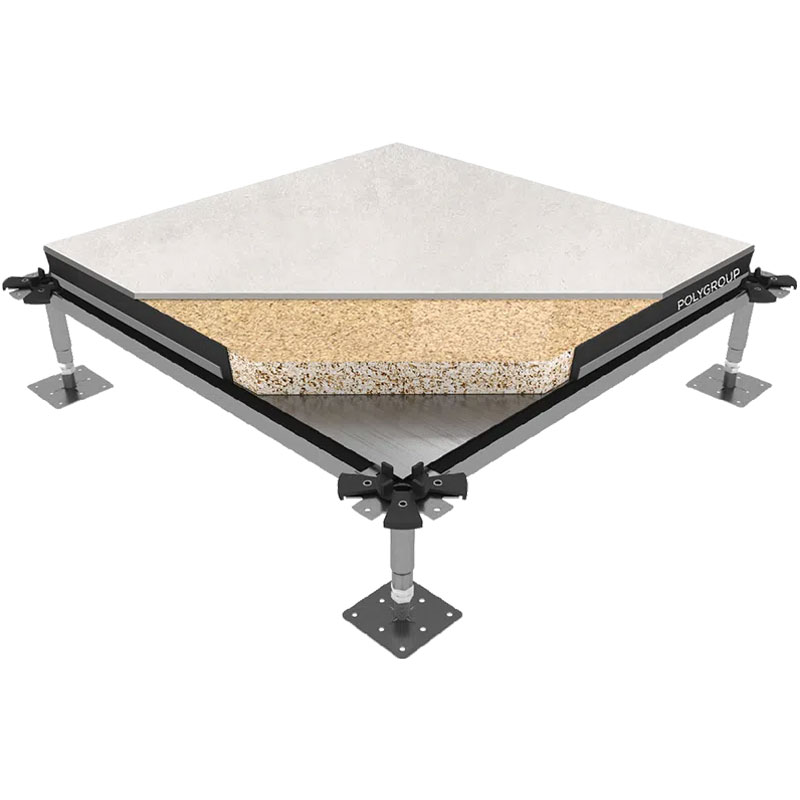

Raised access flooring Gamaflor BANK 35/05 consists of high density chipboard core panels and galvanized steel tray bottom featuring an improved protection against external factors like fire and moisture. Raised access floor BANK panels are highly configurable offering a wide range of covering finish options from factory to turn system into fully accessible.


   33,33 KN/m2             Class 5A              >12 KN              BFL-S1 fire            Acoustic              LEED
Distributed Load.          EN 12825.     Ultimate Load.        classification.         Insulation.       Certification

Antiseismic
ASCE 7-10
Category:

Description

PANEL DIMENSIONS:
Panel Size 600×600 mm.

PANEL THICKNESS:
Panel thickness 30, 35 or 40mm.

FINISHES / COVERINGS:
A wide variety of light finishes / coverings, ceramic, natural wood, granite, etc, is available to fit any interior design. Learn more about our SOVEREIGN technology.

CORE:
High density FSC certified chipboard available in different thickness options according to project needs.

BOTTOM:
Galvanized steel tray of 0.5 mm thickness.

STRUCTURE:
Stable structure of raised access floor consisting of 75 to 2000 mm adjustable in height pedestals and lateral stringers

Raised access floor system GAMAFLOR BANK has a significant high resistance features to static and dynamic loads and fire rating (Bfl-s1 under UNE EN 13501). A stable structure stands on pedestals and stringers ensuring its structural integrity, stability and levelled floor.

The GAMAFLOR BANK panel thickness can be configured in 30, 35 and 40 mm respectively in compliance with the demanding load requirements. Lightweight system and easy to install.
